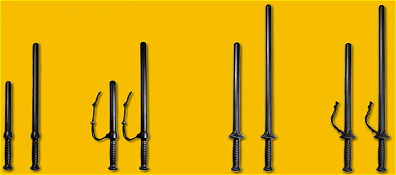

Straight batons type PB, PB-Hs, PBS a PBS-Hs
The batons are produced from the same durable material (polypropylene) as the police plastic tonfa batons. Although they are comparatively lightweight, they are highly resistant to fracture. The batons can be supplied either with or without wrist strap. It is also possible to choose the PBS version with protective shield, which protects the hand against blows.
Standard Lengths for type: PB - inch/cm: 17/43, 19/48, 21/53, 23/58, 25/63
Standard Lengths for type: PBS - inch/cm: 25/63, 27/68, 29/73, 31/78
For order over 500 pcs of type of batons, which is not mentioned in the standard produce lengths is possible to produce any type of offered lengths: 17/43, 19/48, 21/53, 23/58, 25/63, 27/68, 29/73, 31/78.
|
Technical specification for classical straight police batons of the type PB a PBS
Baton diameter at its straight part: 30,5 mm
Handle:
Length: 12,5 cm
Diameter changes - 26 to 32 mm
Shield diameter of the type PBS: 72 mm
Material: HIGH RESISTANT POLYPROPYLENE
|
| Type PB |
| Type |
Weight (g) |
Length (inch) |
Length (cm) |
| PB - 17/43 |
267 |
17 |
43 |
| PB - 19/48 |
302 |
19 |
48 |
| PB - 21/53 |
337 |
21 |
53 |
| PB - 23/58 |
372 |
23 |
58 |
| PB - 25/63 |
407 |
25 |
63 |
| PB - 27/68 |
442 |
27 |
68 |
| PB - 29/73 |
447 |
29 |
73 |
| PB - 31/78 |
512 |
31 |
78 |
|
| |
| CHARACTERISTICS |
TESTING METHOD |
UNIT |
VALUE |
| Flow stress |
ISO 527 |
MPa |
27 |
| Elongation at fracture |
ISO 527 |
% |
150 |
| Modulus of elasticity |
ISO 178 |
MPa |
1300 |
| Izod notch toughness |
ISO 180 |
|
|
| @ + 23° |
KJ/m2 |
12,0 |
| @ - 20° |
KJ/m2 |
6,8 |
| Charpy impact strength notched |
ISO 179 |
|
|
| @ + 23° |
KJ/m2 |
12,2 |
| @ - 20° |
KJ/m2 |
6,0 |
|
| Type PBS |
| Type |
Weight (g) |
Length (inch) |
Length (cm) |
| PBS - 25/63 |
425 |
25 |
63 |
| PBS - 27/68 |
460 |
27 |
68 |
| PBS - 29/73 |
495 |
29 |
73 |
| PBS - 31/78 |
530 |
31 |
78 |
|
|
